We offer a complete solution for your operating room
Anesthesia workstation Atlan A300 and Patient monitor Vista 120S 51 700,00 у.о.
- Meс.3-gas mixer, Std.Cyl.Supp.
- Patient gas module xGM AutoID
- Advanced gas monitoring
- Expert views
- Spontaneous Breathing Support
- Integrated O2 flowmeter
- Dräger, 1 vaporizer
- Gas cylinder holder, 2 cyl.
- Core unit CE
- Sample Line Set (10pcs)
- WaterLock2 -12 pcs.
- Spirolog – 5 pcs.
- O2 CS hose, 3 m, NIST, DIN
- N2O CS hose, 3 m, NIST, EN DIN
- AIR CS hose, 3 m, NIST, DIN
- Mask Silicone Child lg 3 reusable
- Mask Silicone Adult sm 4 reusable
- Mask Silicone Adult lg 5 reusable
- Vapor 2000 Sevoflurane
- AGS active
- Vista 120 mounting plate
- Vista 120S basic
- Vista 120S basic
- Printing Paper 4 pcs
- Rechargeable Li-Ion Battery
- ECG Defib TRUNK 3/5-LEADS
- ECG 3-Lead single pin
- SPO2 Nellcor cable, 3 m
- SPO2 Nellcor sensor DS100A, adult
- SPO2 Nellcor sensor OXIBANDSENSOR adults, children
- NIBP Tube 3m
- NIBP Cuff 5 dimensions
- Temperature Probe Skin, 3m
The combination of Atlan A300 anaesthesia machine and Vista 120S multi-parameter monitor provides true integrated workstation functionality.

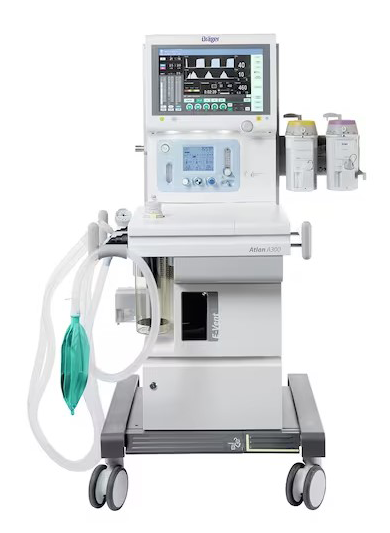

Atlan A300 is designed for low-flow and minimal-flow inhalation anaesthesia in adults, pediatric patients and neonates.
The design architecture of Atlan A300 provides an ergonomic and comfortable workstation for any size operating room.
Atlan A300 is equipped with an electronically driven E-Vent plus piston ventilator (no drive-gas required), mechanically controlled gas mixer with electronic flow measurement, integrated gas measurement module, integrated warmed compact breathing system to warm breathing gas and reduce condensation, fully automatic system test, integrated manual emergency O2 supply, integrated anesthetic gas scavanging, rechargeable battery (up to 120 minutes of operation), 15.3-inch touchscreen display.
In the event of a central gas supply outage and no spare gas cylinders are available, patient ventilation can be continued with atmospheric air.
Atlan A300 anaesthesia machine is equipped with several options to expand ventilation and monitoring capabilities and optimise workflows:
Spontaneous breathing support
In addition to the standard ventilation modes: Manual/Spontaneous (MAN/SPON), Pressure Controlled (PC-CMV), Volume Controlled (VC-CMV), this option provides Synchronised Volume Controlled (VC-SIMV) and Synchronised Pressure Controlled (PC-SIMV) ventilation.
Advanced gas monitoring
Indicator and trend for efficiency of fresh-gas setting and anaesthetic agent consumption (Econometer and Low Flow Wizard (with no trend)) to support intuitive and convenient application of minimal- and low-flow anaesthesia. Access to gas and oxygen consumption and anaesthetic agent uptake data to analyse the low- and minimal-flow practices.
Expert Views
Expert Views allows you to display 3 waveforms and 1 row of parameter fields or 4 waveforms at a time.
Vista 120S patient monitor provides physiological monitoring for patients of all ages: 3-lead ECG, SpO2, temperature, respiration, and non-invasive blood pressure.
Vista 120S has a 12’ colour TFT touchscreen, 8 channels (displaying up to 11 waveforms), stores up to 120 hours of key parameter trends, up to 1200 NIBP measurements and 200 alarm events, and lasts 350 minutes on battery power.
Atlan A300/Vista 120S anaesthesia station will help make the anaesthesia process as efficient, high-quality and safe as possible for both patients and medical staff.
