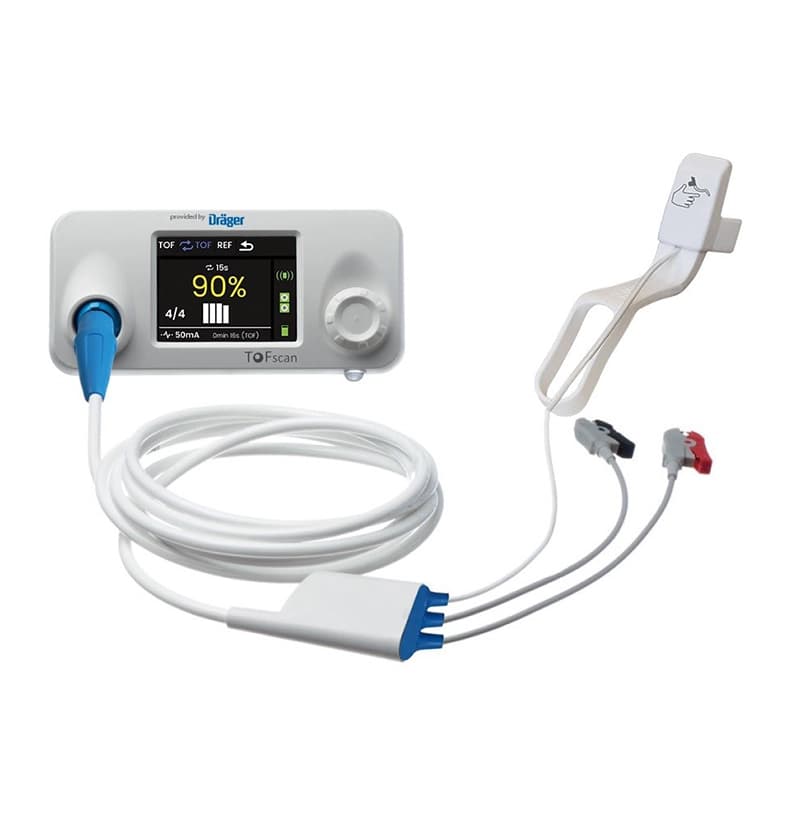

Neuromuscular Transmission Monitor Dräger ToFscan®

The ToFscan® monitor provides an easy, reliable way to measure the muscle relaxation status of an anaesthetized patient.

The ToFscan monitor can be used as a stand-alone device. It can also be connected to the Infinity Acute Care System to display neuromuscular measurements alongside hemodynamic parameters.

Wide range of measurements

The ToFscan device generates several modes of neuromuscular stimulation:

• •Train of Four (T4/T1 and T4/TRef)
• •AUTO ToF (ToF programmed from 15 sec to 15 min)
• •PTC Post Tetanic Count
• •ATP Automatic ToF PTC
• •DBS Double Burst Stimulation (modes 3.3 & 3.2)
• •ST Single Twitch (0.1 Hz and 1 Hz)
• •TET Tetanus 50 Hz

ToFscan's 3D accelerometer produces measurements from the induced muscle responses:

• •ToF %: T4/T1
• •ToF %: T4/TRef
• •ToF Count: Number of responses detected out of 4
• •PTC: Number of responses detected out of 10

Features:

• •Three-dimensional accelerometer sensor
• •Adjustable stimulation current (20 - 60 mA)
• •Automatic switch off
• •Operates on batteries or with AC power supply. Battery power for about one month with normal use (10 TOF measurements a day)
• •Audible messages (can be switched off)
• •No sensor calibration required
