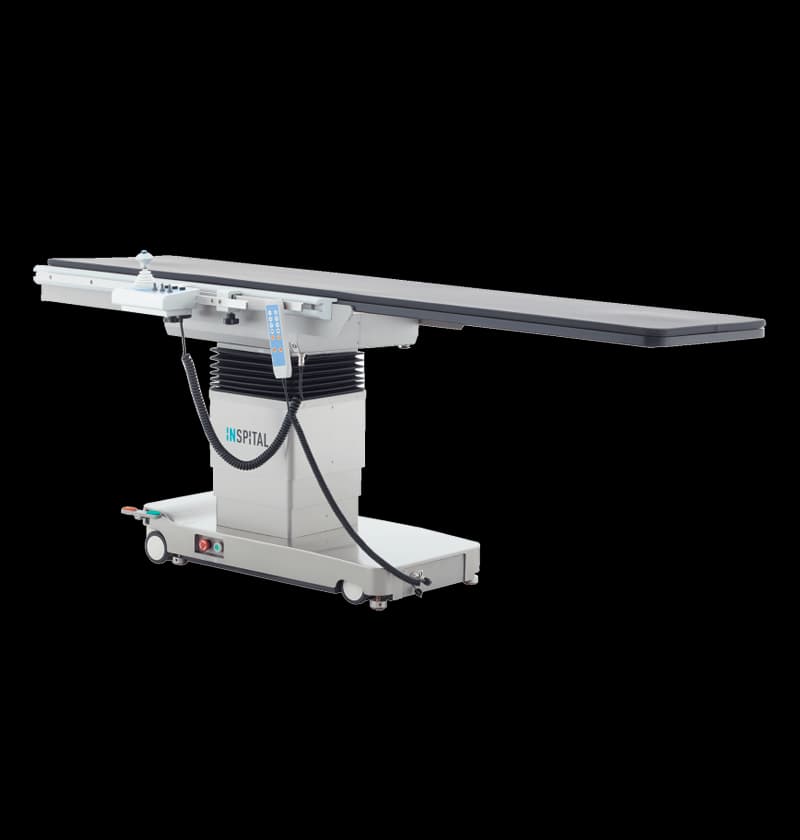

Inspital mobile imaging table OT80.30 is designed to provide excellent X-ray transparency with its lightweight carbon fibre tabletop, while maintaining high load-bearing capacity. OT80.30 offer maximum imaging quality at low radiation and ideal solutions for surgical and interventional radiology. A visco pad ensures a high level of patient comfort.
Floating carbon fibre tabletop with longitudinal sliding of 790 mm and transversal of 215 mm or bidirectional by a precision joystick.
Radiolucent factor of the carbon table top at ≤ 0.43 mm AL equivalent. The low X-ray absorption enables clear imaging, reduction of radiation dose and thus ensures lower radiation exposure for patients and users! This also helps to extend the life of X-ray unit's spheroid tube.
360° imaging capability at a length of 1,100 mm ensures ideal imaging for various applications and surgeries.
Compatible with digital and conventional X-ray units. The low base, which allows an ideal C-arm access, and column cover are made of high quality, durable stainless steel. Easy mobility due to 4 castors.
Height adjustment, tilting, Trendelenburg and smooth longitudinal and transversal sliding are controlled via a wired hand switch or a control panel with a precision joystick assure and ideal patient positioning.
| Table type | Mobile |
| Total length | 2450 mm |
| Width | 620 mm |
| Length of imaging | 1860 mm |
| Max. patient weight | 200 kg |
| Height adjustment | 750 – 1140 mm |
| Lateral tilt | -15° / +15° |
| Trendelenburg / anti-Trendelenburg | 18 ° / -18 ° |
| Longitudinal slide | 790 mm |
| Lateral slide | 215 mm |
| Controls | Hand control and integrated control panel on the column |
| Manufacturer | Germany |
