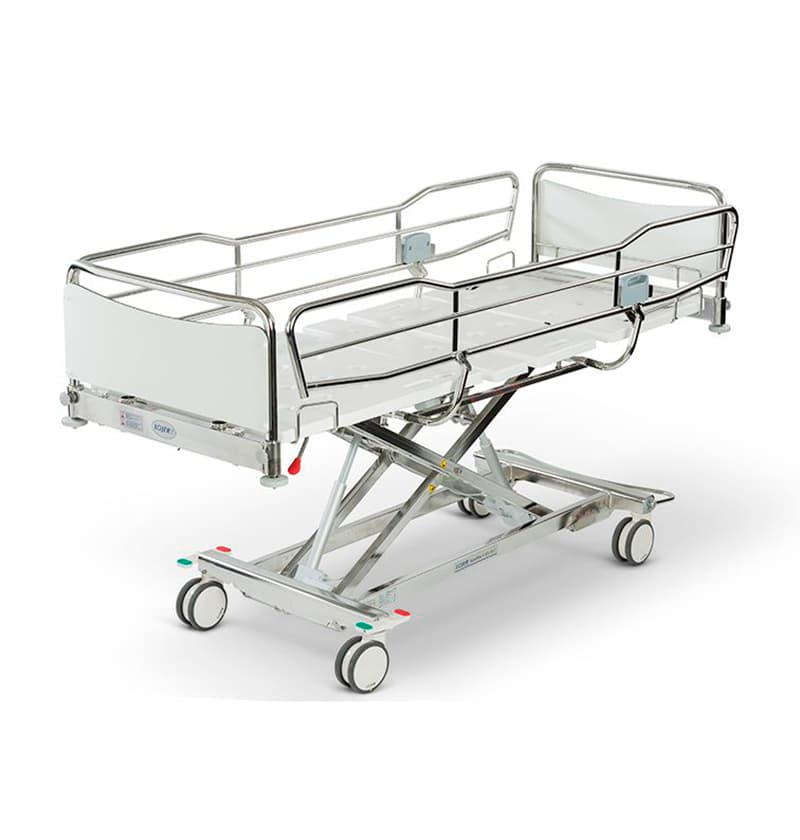

Hospital Bed Lojer ScanAfia X ICU W

Main features:

• •Electropolishing stainless steel (AISI 304) frame structure designed for exceptional long-term use (optional)
• •Meets the requirements of the bed standard EN 60601-2-52 also with regard to machine washability
• •Includes special electrical functions such as Trendelenburg, CPR, and cardiac positions

About

The machine-washable ScanAfia X ICU W hospital bed is ideal for use in a wide range of hospital wards. A nurse control panel, which comes as standard, allows bed functions to be locked off from patients. The bed includes special electrical functions such as Trendelenburg, CPR, and cardiac positions. The back section slide mechanism prevents the patient from slipping towards the foot of the bed and improves comfort. Despite its impressive safe working load (SWL) of 340 kg, the ScanAfia X ICU W is light and it's standard 150 mm twin castors make it easy to move. The bed is designed for long-term use in hospital environments and is available in both 80 cm and 90 cm versions. Made of electropolished stainless steel (AISI 304), the frame is designed for exceptionally long-term use, taking account of the wear caused by machine cleaning (optional). Electropolishing smoothens out microscopic surface variations, which helps to loosen dirt and clean the bed. It also improves the corrosion resistance of the steel, thereby prolonging the lifecycle of this machine-washable bed. Surgical instruments, for example, are usually electropolished. As a standard, the X ICU W comes with a painted frame and polished side rails and bed ends.

Standard

The Scanafia X ICU W hospital bed also meets the bed standard EN 60601-2-52 requirements for machine washability, and fulfils the AK-BWA recommendations for machine-washable equipment and the ISO 15883 suitability standard for equipment washers/disinfectors

TECHNICAL DATA

ModelPatient surface widthRecommended mattress sizeSafe Working Load (SWL)Electronic Trendelenburg/Anti-TrendelenburgThigh section adjustmentBatteryCastors

ScanAfia X ICU W
Total length	2160 mm
800 / 900 mm
Total width (inc. side rails)	900 / 1000 mm
780 / 880 x 130 x 2050 mm
Total weight	108 / 110 kg
340 kg
Height adjustment range	340 – 840 mm
21 ° (12 °) / 18 °
Back section adjustment	0 - 70°
0 - 30°
Calf section adjustment	0 - 11°
2.25Ah (approx. 2000 charging times)
Controls	Control panel for staff
Ø150 mm twin castors and directional wheel | Antistatic EC (thermoplastic rubber with superior water resistance)
Manufacturer	Finland
