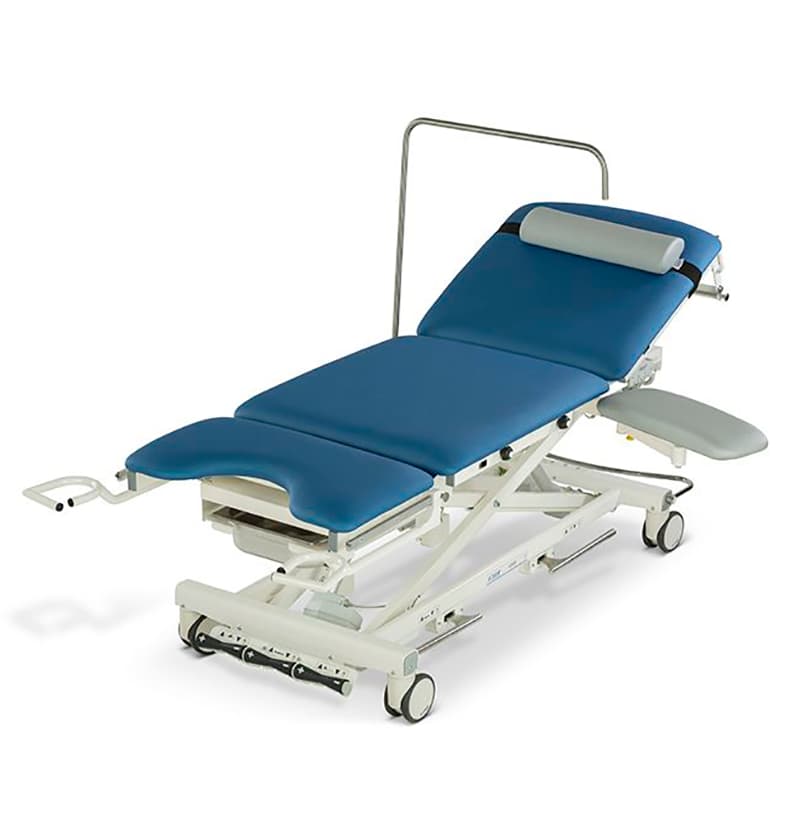

The 4050X gynaecological examination table is the most versatile examination table in our range. It is particularly well suited for gynaecological examinations, but it can also be used in minor procedures and general examinations. The 4050X gynaecological examination table features a three-piece table top with seat section, middle section and back section adjustments. Seat, middle section and height can be adjusted from the front of the table using the new gynaecological foot control set, which makes healthcare personnel’s work more hygienic and effective.
As an option, you can also add a two-piece hands-free adjustment bar to the side of the table or use the hand control that is a standard feature. In addition to the new hygienic gynaecological foot control set, the upholstery material is extremely durable and antimicrobial fabric that is also easy to clean, waterproof and has excellent disinfectant features. As standard the 4050X is equipped with adjustable heel supports (stepless and no levers) and a gynaecological bowl, that is easy to move out of the way when not needed. 4050X’s motors lower using gravity and in emergency situations - if there’s something caught between the mechanism – table rises automatically.
There are two models of 4050X available. The 4050X M has a smaller number of features, whereas 4050X F is more extensive - f.ex. it has a hand control with memory slot, electric seat adjustment and the new gynaecological foot control set (see technical data and features for more details)
| Model | 4050X F | 4050X M |
| Total length | 2000 mm | 2000 mm |
| Total width | 750 mm | 750 mm |
| Total weight | 120 kg | 120 kg |
| Safe working load (SWL) | 210 kg | 210 kg |
| Height adjustment | 490 – 970 mm | 490 – 970 mm |
| Back section length | 700 mm | 700 mm |
| Back section adjustment | 0 - 73°, electrical | 0 - 73°, electrical |
| Middle section length | 820 mm | 820 mm |
| Middle section adjustment | 0 - 73°, electrical | 0 - 73°, gas spring |
| Seat section length | 440 mm | 440 mm |
| Seat section adjustment | 0 - 25 °, electrical | Non-adjustable |
| Other standard features | • Steplessly adjustable heel supports • Gynaecological bowl accessory rails in seat section • Paper roll stand and cutter • Safety feature: angle between seat and middle section min. 105° • Safety feature: auto-lifting in emergency situations • Safety feature: lock function by pressing two pedals on the gynaecological foot control set or buttons on hand control for 3 sec • Adapter for fitting an IV-stand (4 possible positions) |
• Steplessly adjustable heel supports • Gynaecological bowl • Accessory rails in seat section • Paper roll stand and cutter • Safety feature: auto-lifting in emergency situations • Adapter for fitting an IV-stand (4 possible positions) |
| Controls | • Hand control with memory slot and simultaneous movement of different sections • Gynaecological foot control set for height, seat and middle section adjustments |
• Hand control with safety lock function by pressing two buttons for 3 sec |
| Electric Trendelenburg / Anti-Trendelenburg adjusment (optional) | 20 ° / -10 ° | 20 ° / -10 ° |
| Upholstery options | Several material and color options available | Several material and color options available |
| Гарантія | 2 роки | 2 роки |
| Manufacturer | Finland | Finland |
