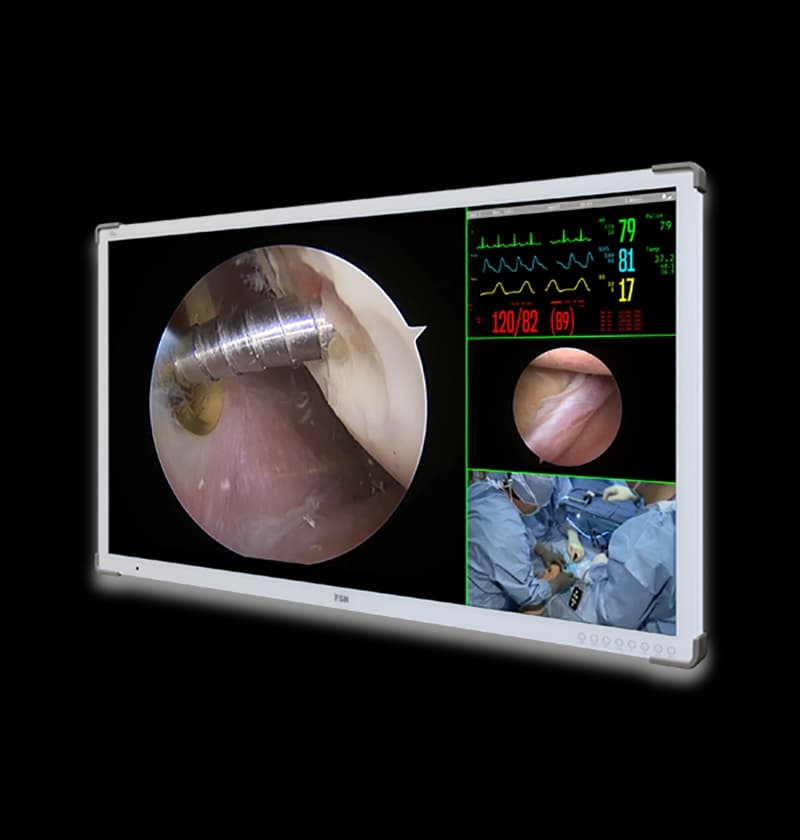

There is plenty of room on the FM-A5504D monitor series for multi-window requirements. Its 3,840 x 2,160 resolution greatly enhances images from endoscopic camera systems. Input source options include DVI, HDMI, SDI, and DisplayPort. The FM-A5504DG model adds 12G SDI to the impressive selection of signal choices.
Ideal for cath labs and modular suites. Easily replace 4 small screens with a simple one screen layout. Choose from PIP, PBP, Triple, or Quad layouts that are preset and ready-to-go in the display menus. Edge-to-edge protective front glass gives this monitor a slim, sleek appearance, and allows for easy cleaning of the front surface. Rounded bezel corners help reduce bumping injuries, especially in today’s active operating room environments. A back cable cover is provided with each monitor to manage cords and wires.
| Model | FM-A5504DS
FM-A5504DG |
| Panel | 55 inch TFT LCD (LED) |
| Resolution | 3840 x 2160 pixels |
| Active Area | 1209.60 (H)mm x 680.40 (V)mm |
| Pixel Pitch (mm) | 0.315 x 0.315 |
| Response Time (typical) | 8 ms (gray to gray) |
| Number of Colors | 1.07 Billion |
| Brightness (typical) | 500 cd/m2 |
| Gamut | BT.709 and BT.2020 compatible |
| Contrast Ratio (typical) | 1100 : 1 |
| Surface Treatment | Anti-glare |
| Viewing Angle (CR>10) | R/L 178°, U/D 178° |
| Input Signal
FM-A5504DS
|
1 x HDMI 2.0
2 x DP 1.2 (SST) 4 (Quad) x DVI (single link) 4 (Quad) x SDI (3G) |
| Input Signal
FM-A5504DG |
1 x HDMI 2.0
2 x DP 1.2 (SST) 1 x DVI (single link) 4 (Quad) x SDI (3G), 2 x SDI (12G) |
| Output Signal
FM-A5504DS |
1 x DP 1.2 (SST) |
| Output Signal
FM-A5504DG |
1 x DP 1.2 (SST)
1 x DVI (single link) 4 (Quad) x SDI (3G), 2 x SDI (12G) |
| Power Supply | SMPS (AC 100 ~240В) |
| Power Consumption | 140W max |
| Unit Dimension | 1292.5(W) x 770.5(H) x 93.5(D) mm
50.89(W) x 30.33(H) x 3.68(D) inch |
| IP Rating | IP30 - overall, IP42 - front side |
| IK Rating | IK07 with 5H AR glass |
| Weight
FM-A5504DS |
36.65 kg, 80.80 lbs. (monitor with cover)
49.73 kg, 109.64 lbs. (shipping package) |
| Weight
FM-A5504DG |
36.65 kg, 80.80 lbs. (monitor with cover)
50.23 kg, 110.74 lbs. (shipping package) |
