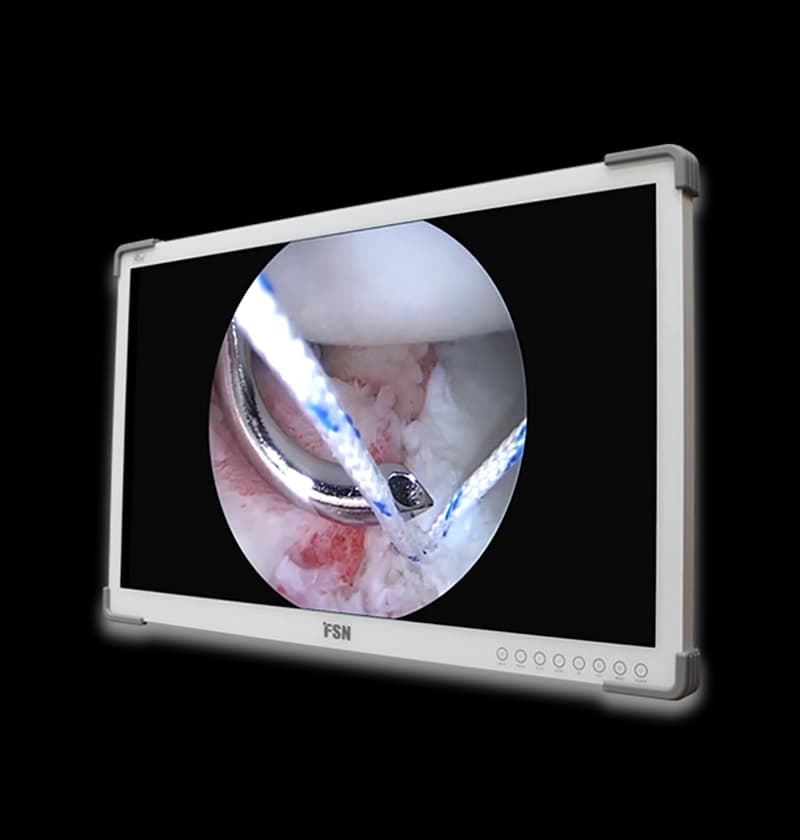

FSN’s 32 inch full high definition medical-grade monitor features a large viewing area, yet is within the requirements of most boom mounting systems. PIP, PBP, TRIPLE, or QUAD screen layouts are supported, giving surgeons the flexibility to work with video images tailored to their preferences. User presets can be saved and recalled. FS-A3202DS is perfectly suited for the sterile field in an operating room.
Connections are available for popular video types, including HDMI, DisplayPort, and 3G-SDI. This display monitor can adapt to different applications without having to buy extra conversion equipment.
FS-A3202DS comes with a powerful and intuitive on-screen user interface for adjusting all types of image settings. DC power is available near the video in/out connections to support smaller components such as fiber optic receivers and wireless systems. Cable clutter is minimized with a back cover.
| Model | FS-A3202DS |
| Panel | 32 inch TFT LCD (LED) |
| Resolution | 1920 x 1080 pixels |
| Aspect Ratio | 16 : 9 |
| Active Area | 698.40 (H)mm x 392.85 (V)mm |
| Pixel Pitch (mm) | 0.36375 x 0.36375 |
| Response Time (typical) | 25 ms |
| Number of Colors | 16.7 Million |
| Brightness (typical) | 500 cd/m2 |
| Color Gamut | BT.709 calibrated |
| Contrast Ratio (typical) | 1300 : 1 |
| Surface Treatment | Anti-reflection, anti-fingerprint |
| Viewing Angle (CR>10) | R/L 178°, U/D 178° |
| Input Signal
|
2 x HDMI (1.4)
1 x DP (1.2) 2 x SDI (3G, HD, SD) |
| Output Signal
|
1 x HDMI (1.4)
2 x SDI (3G, HD, SD) |
| Power Input | AC/DC Adaptor (AC 100~240V, DC 24V/6.6A) |
| Power Consumption | 90W max |
| Latency (typical) | 2 ms max |
| Unit Dimension | 773(W) x 478(H) x 75.2(D) mm
30.43(W) x 18.82(H) x 2.96(D) inch |
| IP Rating | IP33 - overall |
| Weight
|
11.5 kg, 25.35 lbs. (monitor with cover)
17.3 kg, 38.14 lbs. (shipping package) |
