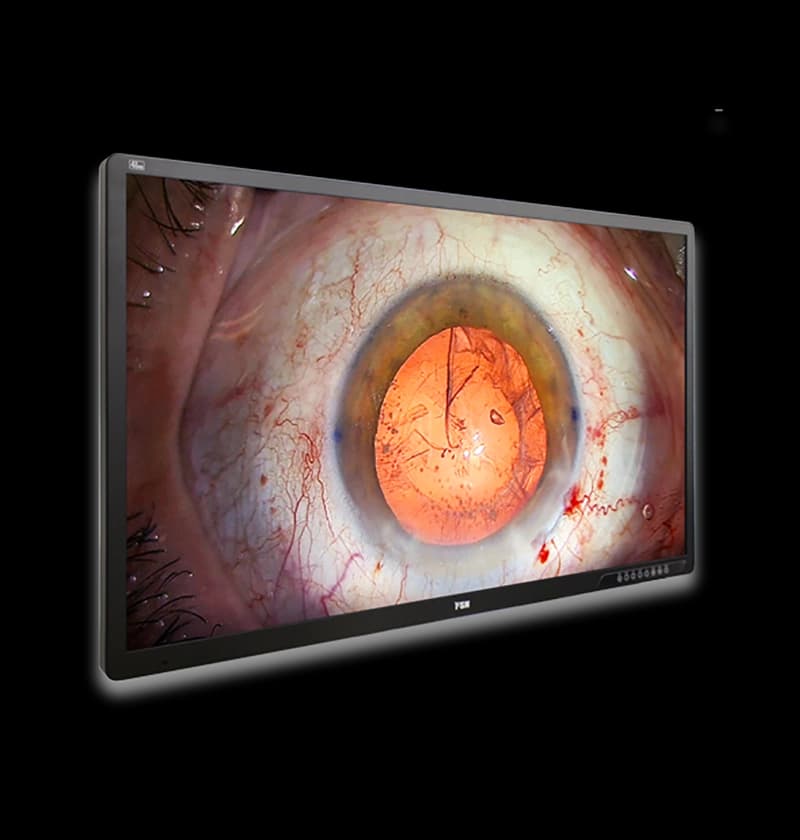

Medical grade monitor FM-A5505DGC is compatible with highly specialized visualization equipment used in operating rooms and surgical suites. It is suitable for showing multiple images at sizes big enough to remain visible across the operating room. Picture quality is crystal clear, and the user interface allows for complete control of image color and multi-window layouts.
A detailed 3D menu offers control for the best possible image format. Side By Side, Line By Line, Top Bottom, SDI level B-DS, SDI Dual Input. FSN Medical’s attention to engineering details, such as rounded bezel corners, backlit touch buttons, and easy to use interface menu controls, allow for safe and efficient interaction. This large screen medical monitor delivers everything that professionals need in a 3D, 4K UHD medical-grade monitor.
| Model | FM-A5505DGC Rev. 02 |
| Panel | 55 inch OLED |
| Resolution | 3840 x 2160 pixels |
| Active Area | 1209.60 (H)mm x 680.40 (V)mm |
| Pixel Pitch (mm) | 0.315 x 0.315 |
| Response Time (typical) | 1 ms (gray to gray) |
| Number of Colors | 1.07 Billion |
| Luminance, Bypass
(2D / 3D) cd/m² |
Peak 376/151 (min) 470/192 (typical) 25% white box
Normal 144/58 (min) 80/73 (typical) 100% white pattern |
| Luminance, D65
(2D / 3D) cd/m² |
Peak 366/135 (min) 420/174 (typical) 25% white box
Normal 136/55 (min) 170/69 (typical) 100% white pattern |
| Luminance, D65
(2D / 3D, HDR) cd/m² |
Peak 496/202 (min) 620/252 (typical) 10% white box
Normal 336/135 (min) 420/170 (typical) 25% white pattern |
| Gamut | BT.709 and BT.2020 compatible |
| Contrast Ratio, D65 (2D, typical) cd/m² | 420,000 : 1 (peak), 170,000 : 1 (normal) |
| Surface Treatment | Anti-glare |
| Viewing Angle | (2D) R/L 120°, U/D 120°
(3D) U/D 16° |
| Input Signal | 1 x HDMI (2.0, HDCP 2.3)
2 x DP (1.2 SST) 4 x SDI (2 x SDI 3G), (2 x SDI 12G) 1 x DVI (single link, HDMI 1.4, HDCP 1.4) |
| Output Signal | 1 x DP 1.2 (SST)
4 x SDI (2 x SDI 3G), (2 x SDI 12G) 1 x DVI (single link) |
| Power Supply | SMPS (AC 100 ~240V) |
| Power Consumption | 350W max, 160W typ |
| Unit Dimension | 1268.5(W) x 753.3(H) x 85(D) mm
49.94(W) x 29.66(H) x 3.35(D) inch |
| Weight | 33 kg, 72.75 lbs. (monitor)
43.8 kg, 96.56 lbs. (shipping package) |
