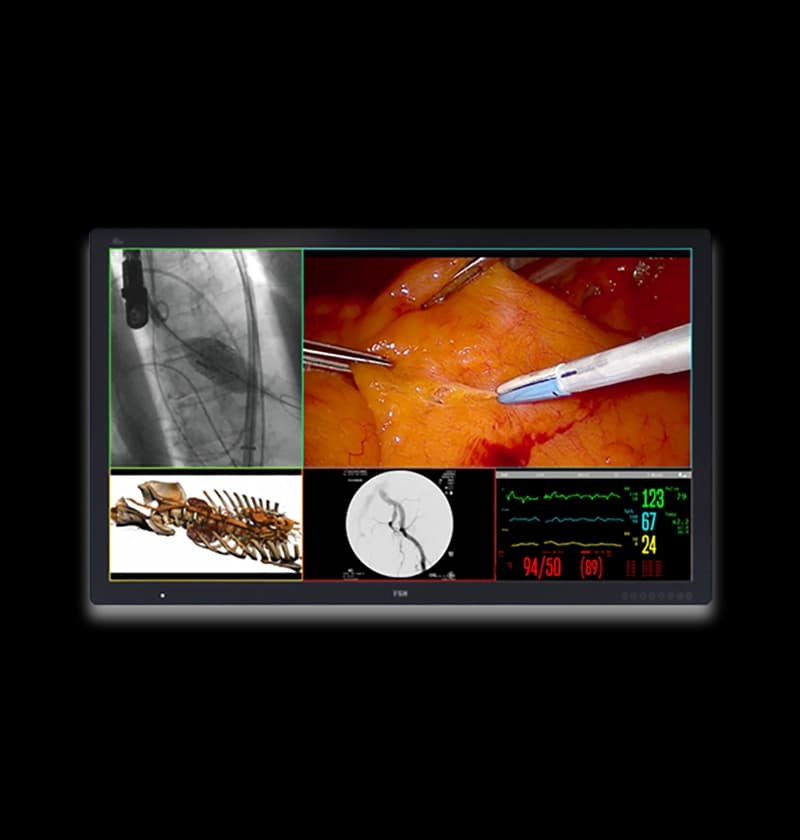

FM-D5802DV can handle multi-modality imaging with its DICOM mode. This all-in-one versatility allows for diagnostic quality viewing in a surgical grade display monitor. The compatibility built into FM-D5802DV means that it can adapt to different applications.
Connections are available for high-performance video signals, including HDMI, DVI, Dual Link DVI, and DisplayPort. This monitor can show multiple screens at the same time on its large surface area. A flush-front protective glass overlay allows for easy cleaning. FSN’s attention to ergonomic design detail, such as rounded bezel corners, wide viewing angles, and a backlit touch menu, allows users to interact with the monitor efficiently and safely.
| Model | FM-D5802DV |
| Panel | 58 inch TFT LCD (LED) |
| Resolution | 3840 x 2160 pixel |
| Active Area | 1270.08 (H)mm x 721.44 (V)mm |
| Pixel Pitch (mm) | 0.33075 x 0.334 |
| Response Time (typical) | 9.5 ms (gray to gray) |
| Number of Colors | 1.07 Billion |
| Brightness (typical) | 700 cd/m2 |
| Contrast Ratio (typical) | 4000 : 1 |
| Surface Treatment | Anti-glare |
| Viewing Angle (CR>20) | R/L 176°, U/D 176° |
| Input Signal | 1 x HDMI 2.0
2 x DP 1.2 (SST) 1 x DVI (single link) 2 x DVI (dual link) |
| Output Signal | 1 x DVI (single link)
1 x DP 1.2 (SST) |
| Power Supply | SMPS (AC 90 ~264В) x 2 ea. |
| Power Consumption | 280W (nominal); 350.4W (max) |
| Unit Dimension | 1358(W) x 822(H) x 105(D) mm
53.46(W) x 32.36(H) x 4.13(D) inch |
| IP Rating | IP20 - overall, IP42 - front side only |
| IK Rating | IK08 with 5H AR glass |
| Weight | 45.93 kg, 101.26 lbs. (monitor with cover)
62.62 kg, 138.05 lbs. (shipping package) |
