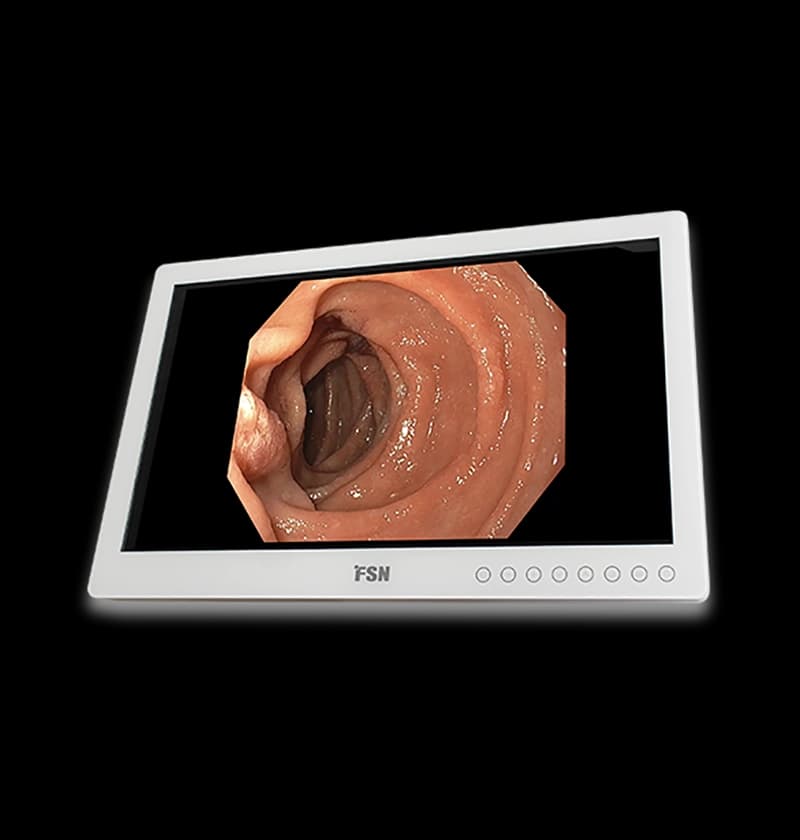

Monitors from FSN Medical Technologies are engineered and built for compatibility with specialized surgical and diagnostic equipment used in operating rooms, emergency rooms, and procedural facilities. This 21.5 inch Full HD monitor offers exceptional value. The size is ideal for limited spaces that still require monitor maneuverability.
FS-E2102D features rapid video signal detection, image pan, zoom, freeze, PIP, PBP, and triple window layout support, all in a fanless – sterile field compatible enclosure. It accepts popular DisplayPort and HDMI signal types. The flush-front filter allows for better cleaning and sterilization practices. Support for user presets is included.
FS-E2102D features an intuitive on-screen menu for image and layout settings. Multi-modality options let doctors view multiple images at the same time. The rounded monitor housing corners help protect OR personnel from accidental bumping injuries. Its lightweight design is ideal for boom or spring-arm mounting.
| Model | FS-E2102D |
| Panel | 21.5 inch TFT LCD (LED) |
| Resolution | 1920 x 1080 pixels |
| Aspect Ratio | 16 : 9 |
| Active Area | 476.06(H)mm x 267.79(V)mm |
| Pixel Pitch (mm) | 0.2479 x 0.2479 |
| Response Time (typical) | 22 ms (rise and fall) |
| Number of Colors | 16.7 million |
| Brightness (typical) | 350 cd/m2 |
| Color Gamut | BT.709 calibrated |
| Contrast Ratio (typical) | 1000 : 1 |
| Surface Treatment | Anti-reflection, anti-fingerprint |
| Viewing Angle (CR>10) | R/L 178°, U/D 178° |
| Input Signal
|
2 x HDMI (1.4)
1 x DP (1.2) |
| Output Signal
|
1 x HDMI (1.4) |
| Power Input | AC/DC Adaptor (AC 100~240V, DC 12V 5A) |
| Power Consumption | 45W max |
| Latency (typical) | 2 ms max |
| Unit Dimension | 527.9(W) x 334.5(H) x 58.9(D) mm
20.78(W) x 13.17(H) x 2.32(D) inch |
| IP Rating | IP33 - overall |
| Weight
|
5.48 kg, 12.08 lbs. (monitor)
8.45 kg, 18.62 lbs. (shipping package) |
