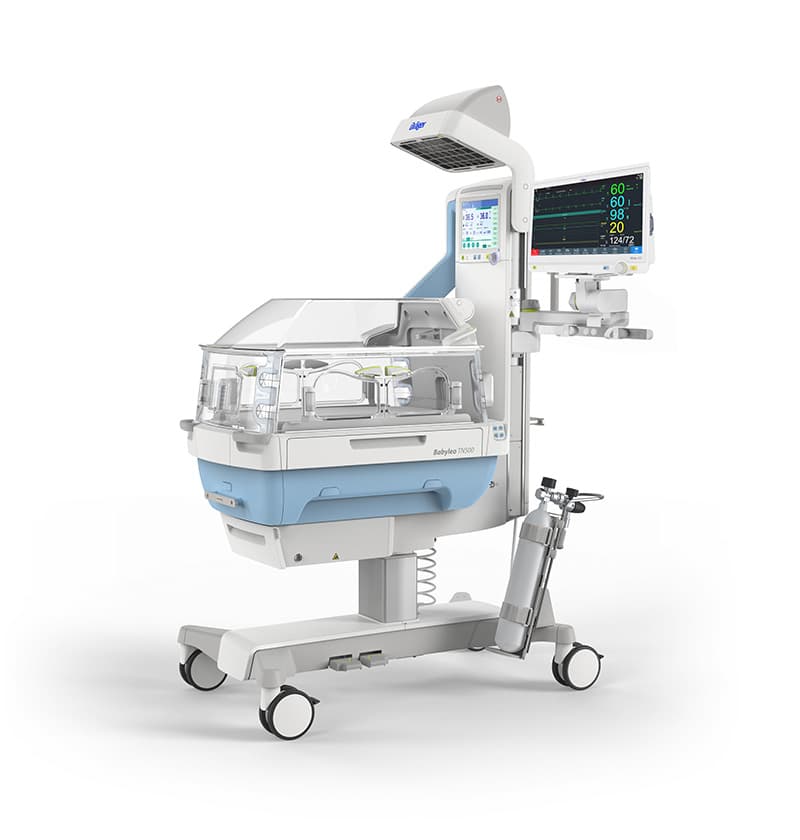

Dräger Babyleo TN500

Dräger Babyleo® TN500 is Dräger’s first IncuWarmer that provides optimal warming as an incubator, as a radiant warmer and during the transition between closed and open care. The convective heater, dual radiant warmer and heated mattress are synchronized to keep the temperature stable so heat loss and overheating are avoided.

The convective heater is activated on a low level while the radiant heater is running so when you decide to
switch modes, the transition can happen immediately giving you quick access without having to cope with heat loss. Advanced therapy warm-up, weaning and cooling modes allow you to focus on the patient.

The closed humidification system allows you to set the humidity level up to 99% RH in manual mode or gives you the option to use Auto mode.

In incubator operation, Babyleo® TN500 provides controlled ambient conditions with regulation of the air temperature, the humidity, and the oxygen concentration (option). With the hood open, Babyleo® TN500 is operated as a radiant warmer.

Range of functions of the Babyleo® TN500 basic device:

• •Convective heater and radiant warmer incl. compensation when the bed is tilted
• •Humidity control with condensation management (ClearView)
• •Therapy modes (regulation of air temperature and skin temperature, kangaroo mode, manual operation as a radiant warmer)
• •Standby operation between incubator and radiant warmer, to ensure a rapid change of operating mode without loss of heat
• •Quick and simple mechanical opening of the hood
• •Ergonomic access to the patient compartment via 5 hand ports, side and front access panels, and the hood
• •Electrical height adjustment of the device for optimum adaptation to clinical users and parents
• •Continuously variable electrical bed-tilt mechanism (up to 13°) and bed height adjustment

• •Color touchscreen with Dräger touch-turn-confirm concept
• •X-ray tray, accessible from outside
• •Alarm management (rising alarm volume, suppression of foreseeable alarms, muting, nurse call)
• •Light sources (working light, night light, moodlight)
• •Automatic humidifier cleaning
• •Simple device reprocessing
• •Possibility of attaching accessories such as syringe pumps, patient monitor, etc. on both rails of the main column
• •Communication via serial port (MEDIBUS.X), nurse call

To expand the functionality of the Babyleo® TN500, it can be equipped with additional options and components:

Option scale, standard

The electronic scale is seamlessly integrated into the Babyleo® TN500 and measurement indications and trends are shown on the display screen.

The Standard Scale and the Certified Scale, which conforms to NAWI guidelines, are available.

Option heated mattress

The heated mattress is available for additional warming of the patient from below. The material is x-ray translucent so the use of the x-ray tray is possible. The Auto Mode regulates the temperature of the heated mattress and can be operated in open and closed care.

Оption servo oxygen

AutoThermo package

Option for enhanced therapy applications:

• •Tolerate cooling: all heat sources are switched off, skin temperature monitoring and trend, humidification and oxygen regulation are possible
• •Warm-up: controlled warm-up of the patient in defined temperature steps and intervals until the target value is reached
• •Weaning: reduction of the air temperature in controlled temperature steps and intervals while monitoring the patient's skin temperature until the target value is reached.

Developmental Care package

Option for supporting developmental care

• •Audio stimulation: integrated speaker in the sensor wall, connection to any MP3 player or cellular phone via audio cable (3.5 mm audio jack)
• •Measurement of light level and noise level inside the patient compartment. Display on the user interface, trend

This way you are aware of the baby's exposure to potentially harmful stimuli and you can react to reduce these stressors. A safely integrated audio stimulation function gives you the opportunity to play mom's heartbeat or voice to soothe and stabilize the baby.

Gas cylinder holder

A quick release holder allows you to attach gas cylinders (one oxygen and one air) to the trolley.

Drawer or Swiveling drawer

A drawer allows you to store all items needed for your care practices.

Multi-purpose holder

The holder is attached to the bed support and provides a hanger for suspending items directly above the patient, e.g. feeding tubes, support for treatment of abdominal wall defect etc.

Ventilation hose holder

Dräger VarioLux®

The Dräger VarioLux® offers cool, highly efficient, and variable intensity examination light specially designed for use in neonatal intensive care settings. Made for single-handed operation, it features adjustable color settings as well as a dimmer function.

Bed Coupling

IV pole

Incubator Cover

The specially designed incubator cover protects the neonate from bright light and helps implement a day and night rhythm. The phototherapy flap enables the use of phototherapy without disturbing other patients in the room.

Softbed Mattress

Thanks to the viscoelastic foam core, the Dräger Softbed mattress supports patient comfort. The design takes into account the special needs of sensitive, immature skin. The soft material minimizes conductive heat losses, which helps contribute to the positive development of the infant since cold stress can be avoided.
