The Dräger BiliLux phototherapy light

LED phototherapy system for the treatment of neonatal hyperbilirubinemia.

Phototherapy is effectively used for treating neonatal unconjugated hyperbilirubinemia. The BiliLux phototherapy light has its irradiance peaks in the most effective wavelength range to reduce the bilirubin which is 460 –490nm.

The irradiance can be dimmed in 5 steps to provide proper therapy for the individual patient. The phototherapy light features a large surface area to cover full term and premature babies. The irradiance is evenly distributed over the entire mattress to help ensure effective phototherapy.

The BiliLux also features a white observation light to observe the baby between phototherapy sessions or to switch white light on during phototherapy to soften blue light.

The optional BiliLux Radiometer is specifically designed for the phototherapy light and instantly measures the irradiance. Use of the radiometer helps ensure the correct positioning of the baby under the phototherapy light and the adequate irradiance that the baby receives. In addition, each measurement (incl. date and time) and the phototherapy duration can be stored and downloaded in a phototherapy report.

Light shield curtain helps to block the light of the phototherapy during phototherapy treatments to protect caregivers, other patients and parents from the blue light. Flaps at the front and back allow for easy access to the patient.

Phototherapy mask Eyemax 2 - the latex-free Eyemax 2 provides optimum comfort and protection for patients during phototherapy treatments.

The BiliLux phototherapy light was designed for flexible use and seamless integration into the neonatal workplace.

You can start and set up the BiliLux:

• •on the incubator hood,
• •on the optional spring arm,
• •on the optional trolley.

BiliLux phototherapy light

The BiliLux phototherapy light can be placed directly on an incubator hood. It has slip-resistant feet on the bottom that help to hold it in place. The phototherapy light houses the 20 blue lights that provide therapy as well as two white lights used for observation or soften the blue light. The front panel has a display screen and keys to control functions and change settings. The BiliLux phototherapy light also has the capability to produce a phototherapy report via export to a USB flash drive that is supplied with the device.

BiliLux with optional spring arm

The BiliLux with spring arm consists of the phototherapy light, an adjustable spring arm, and mounting provision that allow the BiliLux to be used with various Dräger warming therapy devices and ceiling supply units. When mounted on the arm, the phototherapy light can be rotated and positioned for optimum effectiveness. It can be easily attached and released from the spring arm by using the quick-connect mechanism.

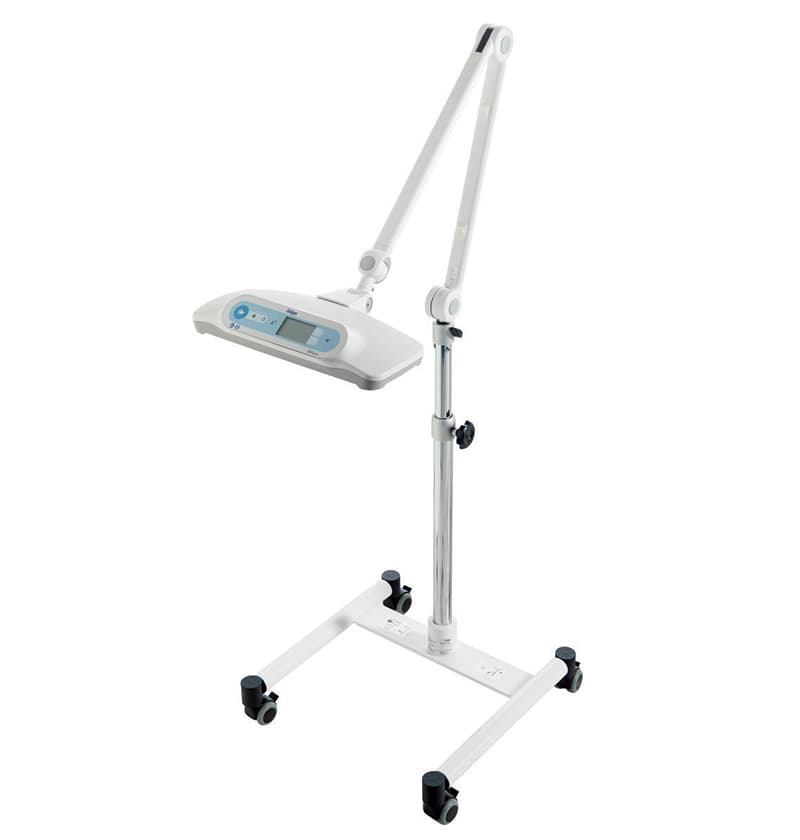

BiliLux with optional trolley

The BiliLux with trolley consists of the phototherapy light, an adjustable spring arm, and a rolling trolley that allows use above an incubator, radiant warmer, crib, or bassinet. The trolley has four locking castors and a height-adjustable pole. These features, together with the adjustable spring arm, allow the BiliLux to be moved, rotated, and positioned for optimum effectiveness. The phototherapy light can be easily attached and released from the spring arm by using the quick-connect mechanism.
