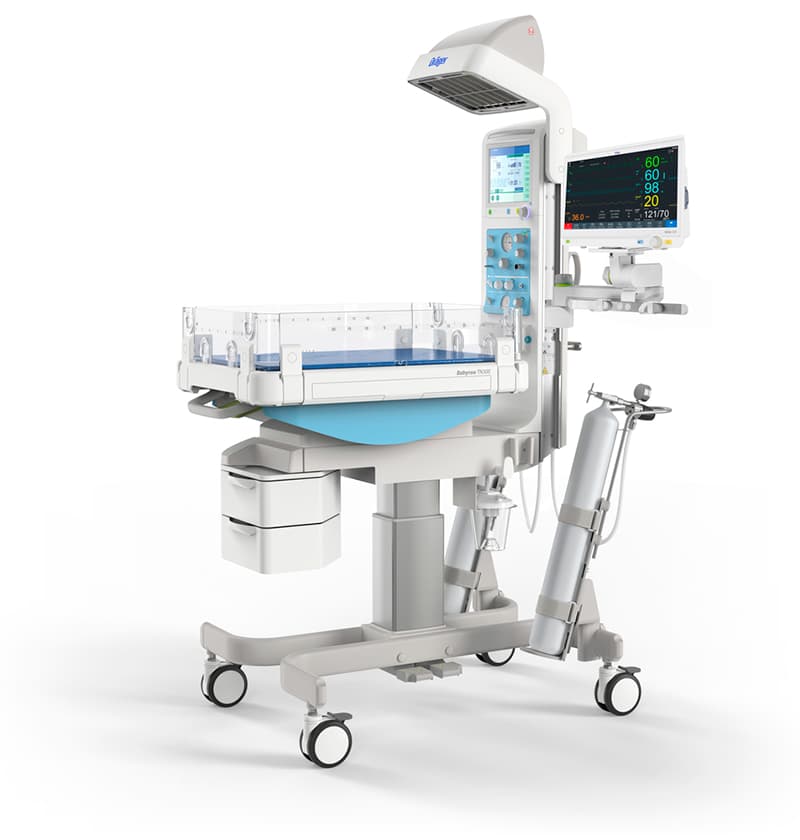

The Babyroo® TN300 is a configurable open care warmer for infants and neonates up to 10 kg with stateof-the-art thermoregulation capabilities as well as advanced integrated technologies to support emergency resuscitation and family-centred care. From delivery room to the neonatal intensive care unit to the final discharge, the Babyroo® TN300 is scalable to use in a variety of hospital environments along the patient pathway.
The Babyroo® TN300 keeps temperatures stable while minimising heat loss for the infant by offering two combined heat sources: a radiant warmer and an optional heated gel mattress. The device is designed to provide uniform heat distribution continuously to the entire mattress surface even when the bed is tilted for clinical procedures. The optional canopy and heated gel mattress help to ensure an efficient and stable warmth supply during transfer. Moreover, our device monitors central-peripheral temperature differences through integrated Thermomonitoring to help detect thermal stress.
The resuscitation module requires minimal setup, can be easily configured to meet guidelines set forth by NRP/ILCOR and helps you standardise your protocols and meet resuscitation guidelines across the neonatal care area. The Respiratory Support Module AutoBreath® automatically delivers the desired levels of FiO2, flow, max pressure, rate, and PEEP. When your critical patients need further respiratory support after the initial stabilisation, our AutoBreath® functionality helps you to bridge respiratory support until your critical patient arrives on the NICU.
A large graphic display with dedicated and configurable screen views readily displays all vital parameters.
Range of functions of Babyroo® TN300 device:
- •Radiant warmer including compensation when the bed is tilted
- •Therapy modes: Manual, Skin, and Kangaroo (special mode to minimise alarms)
- •Patient thermomonitoring with central and peripheral skin temperature sensors
- •Four different views: Main view, Labor and delivery view, Thermomonitoring view, Family view
- •Fixed height or adjustable height trolley with dual castors
- •Color touchscreen with Dräger touch-turn-confirm
- •Foldable side walls and multiple hose grommets
- •Bed-tilt mechanism and bet-tilt angle indication
- •Working light with 3 light intensities
- •Alarm management (rising alarm volume, suppression of foreseeable alarms, silencing)
- •GCX rails for mounting accessories such as patient monitors, pumps, IV pole etc
- •Heated gel mattress or SoftBed mattress with pass through X-ray tray (accessible from outside)
- •Simple device reprocessing
- •Communication via serial port (MEDIBUS.X), nurse call
Options and Accessories:
- •Integrated resuscitation module (Different Variants)::
- •Resuscitation Module with O2 only (no gas mixer)
- •Resuscitation Module with gas mixer (manual and T-piece resuscitation, oxygen and air wall/cylinder connections)
- •Resuscitation Module with gas mixer and AutoBreath (manual, T-piece resuscitation and AutoBreath, single circuit for transitioning between T-piece resuscitation and AutoBreath)
- •Suction Unit. VarioVac is a pediatric suction unit with a manometer and our VarioSafe filter system to protect the central vacuum against contamination.
- •Integrated scale (standard or NAWI/OIML compliant) - measurement indication on the display unit, trend
- •Heated gel mattress is made with high-quality silicone that provides a comfortable surface and minimises the risk of pressure points.
- •works in conjunction with radiant warmer to provide additional warming of the patient from below, ensuring that the desired temperature is maintained
- •measurement indication on the display unit, trend
- •SoftBed Mattress - thanks to the viscoelastic foam core, our SoftBed mattress supports patient comfort. The design takes the special needs of sensitive and immature skin into account. The soft material minimises conductive heat loss, which helps to foster an environment where the newborn can grow.
- •Pulse oximetry (SpO2) (Masimo SET) - displays pulse oximetry (SpO2) and pulse rate to optimise
resuscitation. The Infinity MCable-Masimo SET connects the devicе to Masimo SET SpO2 sensors and provides continuous noninvasive monitoring of functional oxygen saturation of arterial hemoglobin (SpO2), pulse, and perfusion index.
- •Autothermo package (software to allow warm-up and tolerate cooling):
- •Tolerate cooling: all heat sources are switched off, skin temperature monitoring and trend are possible
- •Warm-up: controlled warm-up of the patient in defined temperature steps and intervals until the target value is reached
- •Swivel drawers for storage (single or dual) provide easy accessibility to supplies, with instrument tray which allows for placement of key instruments for quick access.
- •Holders for gas cylinders (oxygen and air)
- •Bed canopy to avoid drifts during intrahospital transfers
- •Accessories such as phototherapy light, examination light, temperature sensors, sensor covers, breathing circuits to support clinical protocols
- •Possibility of attaching accessories such as syringe pumps, patient monitor, etc. on both rails of the main column
- •Breathing Circuits - VentStar T-piece breathing circuit and AutoBreath breathing circuit are disposable breathing circuits made for use with newborns. The optimal fit helps to ensure effective resuscitation and patient safety. The disposable convenience enhances workflows in the labour & delivery room while preventing cross-contamination.
The Babyroo® TN300 is designed with infection prevention in mind with smooth surfaces and no hard edges. Thе design of the compact radiant heater provides optimal heating and aims to eliminate the need for you to adjust or even touch the warmer. You can easily disassemble the device due to its limited number of parts, minimising device turnaround time.
