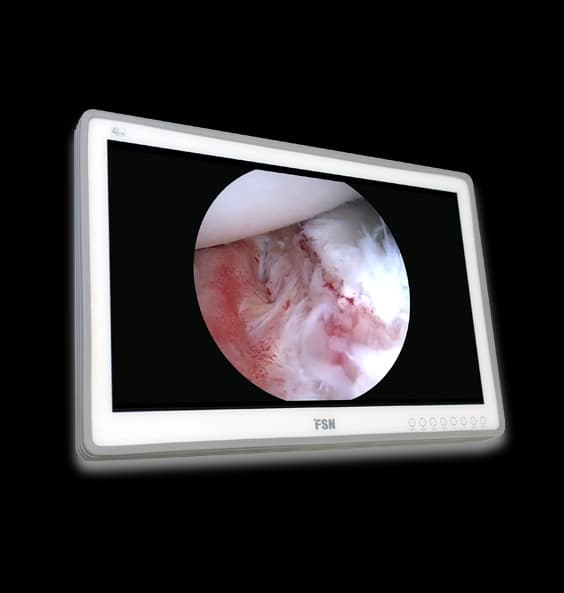

The FM-E2701D series display monitors offer ultra-clear viewing of endoscopic, fluoroscopic, ultrasound, or other live surgical video content. Rapid signal detection of video sources found in the OR, plus extensive built-in timing tables are the keys to this model’s compatibility.
These units have settings that allow for flexible screen layouts, such as picture-by-picture, using separate video signals. They are solid, yet economical, performers that have all of the features needed in today’s OR.
| Model | FM-E2701D
FM-E2701DG |
| Panel | 27 inch LCD (LED) |
| Resolution | 3840 x 2160 pixels |
| Active Area | 596.16 (H)mm x 335.34 (V)mm |
| Pixel Pitch (mm) | 0.15525 x 0.15525 |
| Response Time (typical) | < 16 ms (rise + fall time) |
| Number of Colors | 1.07 Billion |
| Brightness (typical) | 700 cd/m2 |
| Color Gamut | BT.709 and BT.2020 compatible |
| Contrast Ratio (typical) | 1000 : 1 |
| Surface Treatment | Anti-reflection |
| Viewing Angle (CR>10) | R/L 178°, U/D 178° |
| Input Signal
FM-E2701D |
2 x HDMI 2.0
1 x DP 1.4 (SST) |
| Input Signal
FM-E2701DG |
2 x HDMI 2.0
1 x DP 1.4 (SST) 2 x SDI (3G, 12G) |
| Output Signal
FM-E2701D |
1 x HDMI 2.0
|
| Output Signal
FM-E2701DG |
1 x HDMI 2.0
2 x SDI (3G, 12G) |
| Power Input | AC/DC Adaptor (AC 100~240V, DC 24V/6.6A) |
| Power Consumption
FM-E2701D |
110W max |
| Power Consumption
FM-E2701DG |
130W max |
| Latency (typical) | 1 ms |
| Unit Dimension | 671(W) x 423(H) x 74.2(D) mm
26.42(W) 16.65(H) 2.92(D) inch |
| IP Rating | IP33 - overall |
| Weight
FM-E2701D |
9.17 kg, 20.21 lbs. (monitor with cover)
13.7 kg, 30.2 lbs. (shipping package) |
| Weight
FM-E2701DG |
9.40 kg, 20.72 lbs. (monitor with cover)
14.1 kg, 30.08 lbs. (shipping package) |
